Programmatically start recording on NVR

[pianoetudes]

Does anyone here know how to programmatically start recording on NVR?

I am developing an app for the following scenario:
- Leak detector has noticed water leak in the basement and notified IFTTT app.
- The app will send HTTP post request to Amcrest NVR to start video recording of Camera 1 in the basement.

Amcrest does have HTTP API SDK for cameras and I was able to programmatically take snapshots in the camera. My question is for the NVR, not camera.

THanks.

[jack7]

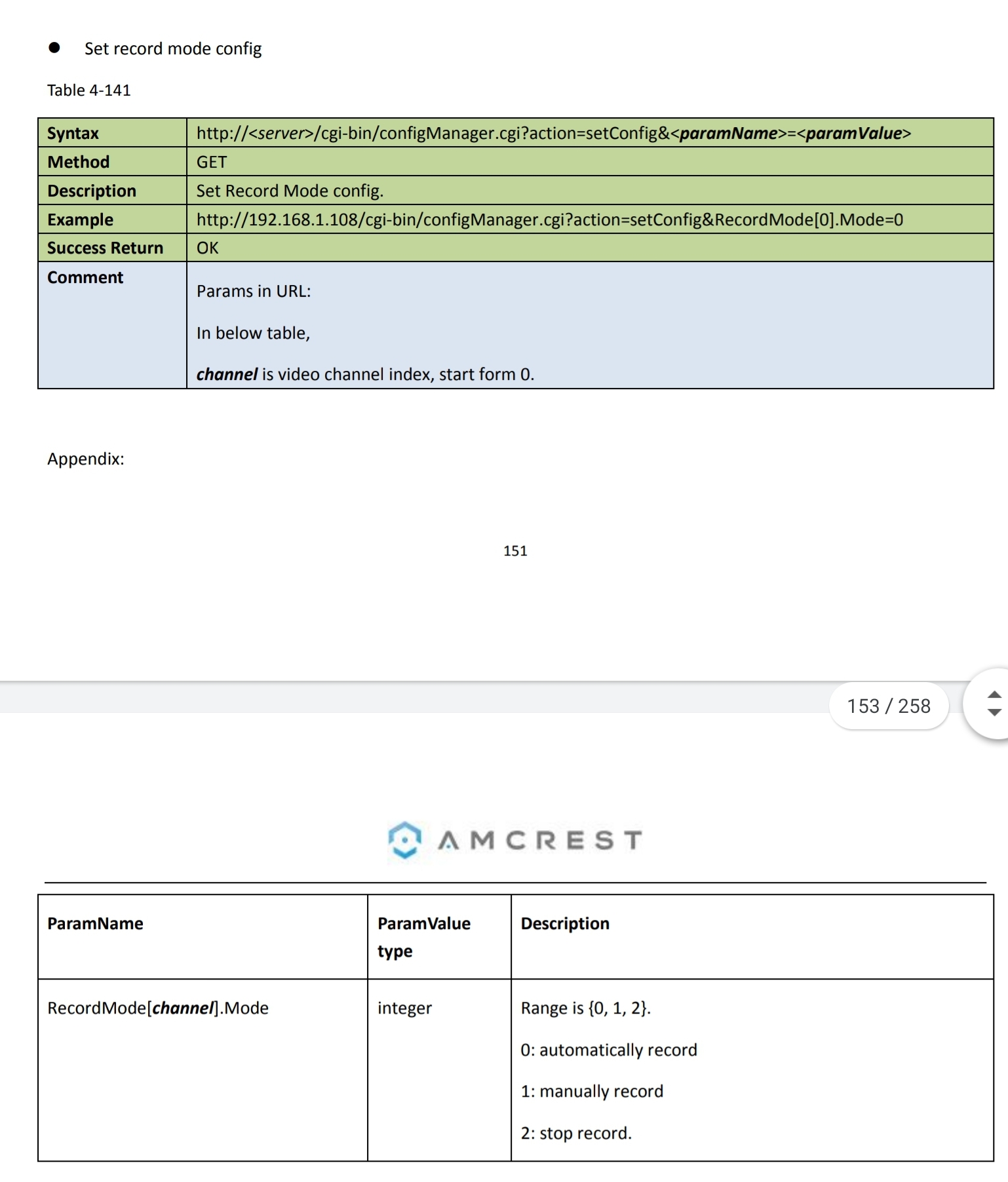

It looks like you could do that using the NVR IP address and camera channel number in:


[pianoetudes]

Thank you. I'll try this and reply if it is working.

[pianoetudes]

Good news. I am able to programmatically start a recording.

To start manual recording:
RecordMode[{channel}].Mode = 1

where {channel} is zero-based index of the channel (my NVR has 8 channels).

To stop the recording, set the Mode = 2 (if I don't do this, the recording will never stop). At the end, I need to set it back to automatic by setting Mode = 0.
