Having trouble getting rid of multicam in tour AMDV5M8

[dsobieralski]

I am trying to set up a tour where it cycles through my cameras (loops) full screen. I do NOT want the 4 cam shot, the 8 cam shots, or anything else other than it looping endlessly through all of the cameras full screen. I have tried for hours to make this happens and I can only get it to cycle once and then it goes to the split 4 and the split 8 and another split 8 with some info on the last pane. I tried deleting all of the cameras and adding the ones individually, but it still cycles through my unwanted screens. I have picked "Single Camera View" when setting up and after it cycles through my cameras, it goes to the 4 split and the 2 8 split screens. Return of this unit expires tomorrow, so if I don't figure it out today, it is going back, because my 10 year old one I was upgrading performs this option, but I wanted the higher resolution and updated features of this unit. Can anyone walk me through it, and please do a step-by-step. Thanks and I hope this reaches you in time.

Model: AMDV5M8

[Revo2Maxx]

You will need to go to tour area and remove all tour events you don't want displayed. Meaning if you only want 4 split then you would remove all single channel, 8 ch and so on. Thus leaving only tour type you want.

[dsobieralski]

I deleted all of the tour settings and then added just the cameras in single camera view in the tour settings and it still stayed the same. Perhaps, I should explain a little bit further. When you first turn on the unit and it starts showing the views, that is what I want to be full screen view and not four or eight. Cameras in full screen and let it cycle continuously. I deleted everything from the tour settings and added each camera individually, rebooted it, and it seems to do the same thing. I have logged into the web menu and try to do it as well. Note, I am not looking forward to be in the live or recorded area but in whatever that startup screen is that just cycles. I have since sent the unit back this morning because after 8 hours of trying to get it to do what a 15-year-old unit currently does, I figured I would get my money back because it was the last day that I could return it. If someone can show me definitive proof that this is in fact possible, I would gladly purchase it again and go through a walk through

[Revo2Maxx]

Ok so if you want the DVR to cycle each channel even after a reboot I would have to look into that.. I know I do everything I can not to scan all my channels because I don't like the idea of something happening in between the time it takes to go from 1 camera to the next and back to the camera that might have an event..

So anyway I revisited the tour and I am not sure how you are doing it. I just setup mine to tour all my channels on my 16ch NVR. While i have not changed my NVR back from locking out 9-16 when it wasn't logged in and sure enough after a did a reboot after setting up my NVR to tour the NVR started to tour again after reboot and when it made it to channel 9-16 they just toured with a black screen and lock but recorder did in fact tour after a reboot.. Did you do a manual tour or did you enable the tour in the tour menu?

So I am clear, When my system rebooted it loaded with 9ch grid view to start with, then after a couple of seconds started the tour.. I was thinking at first maybe it needed to be logged in to tour but no started with it even after a reboot..

Now in my pictures below you can see that tour was enabled for main screen. I also have Sub screne tour that I can setup that I didn't remove any of the info and can do 2 different tours on my device if I wanted... If your machine has both main and sub make sure you setup for the right tour group.

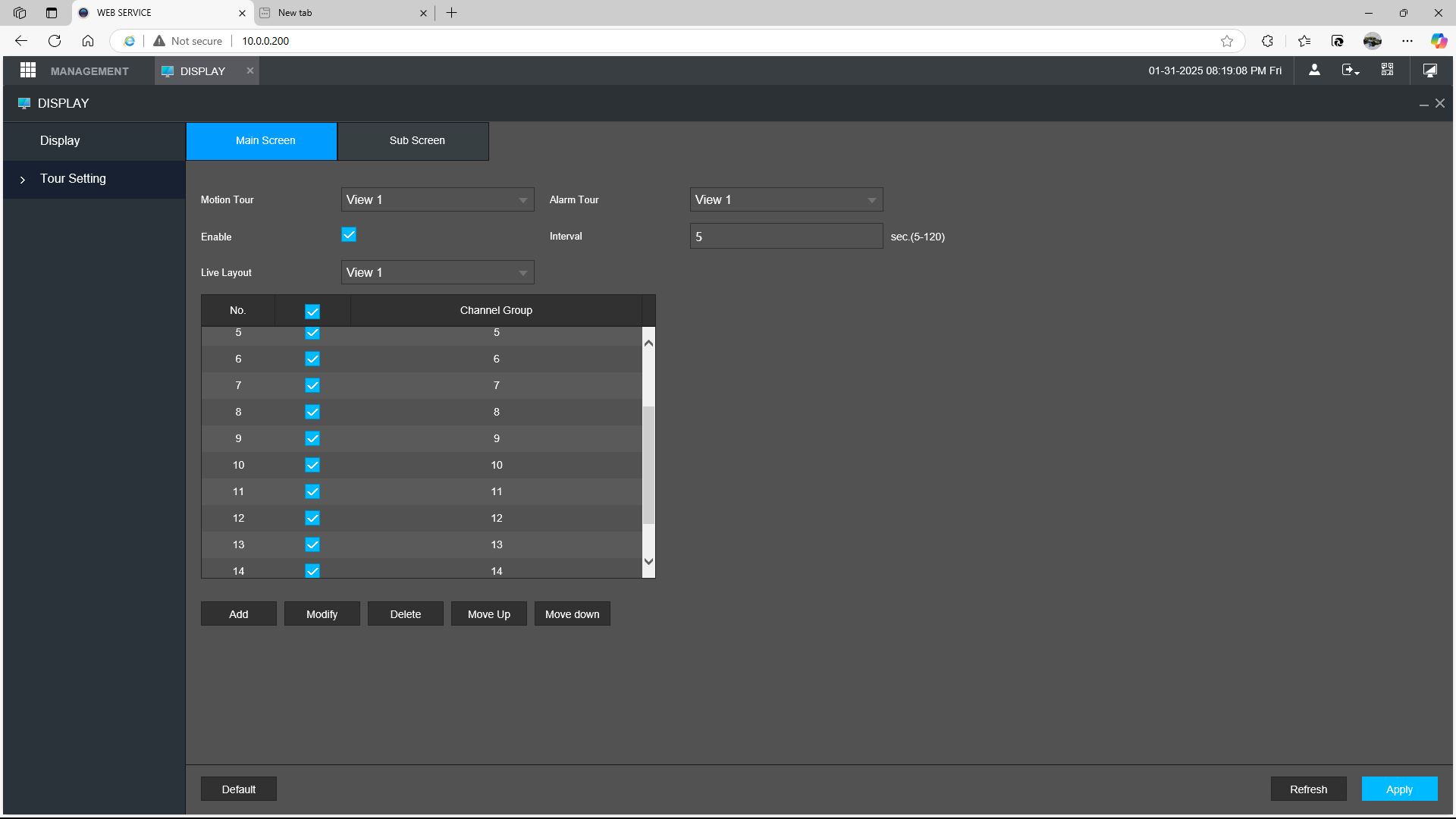

Screenshot (4136).png (51.36 KiB) Viewed 1655 times

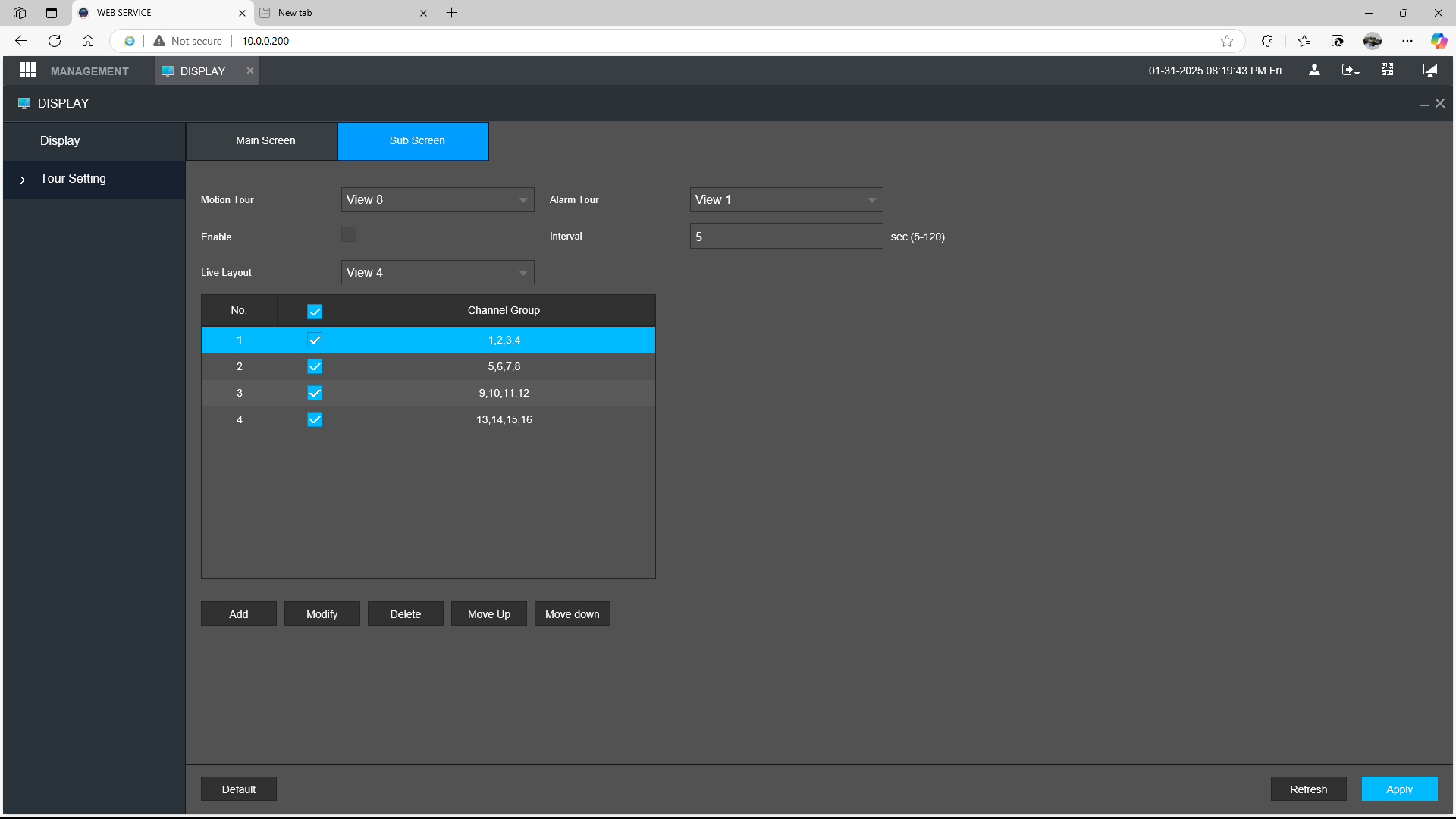

Screenshot (4137).png (48.78 KiB) Viewed 1655 times

Screenshot (4138).png (47.63 KiB) Viewed 1655 times

[dsobieralski]

I will repurchase the unit and give this a try. I really want the upgrade, but I was pulling my hair out trying to omit the 4 and 8/BIG camera views and only want the unit to cycle endlessly 1 camera at a time full screen.
